Semiconductor vacuum components CNC machining delivers critical ultra-high vacuum hardware for semiconductor wafer fabrication. Wafer production heavily relies on stable UHV environments for etching, PVD, CVD, ALD, ion implantation and automated wafer transfer. All vacuum structural parts must satisfy strict standards: ultra-low outgassing, minimal leakage, micron-level dimensional tolerance, high surface cleanliness, and plasma resistance. Most of these critical components are manufactured via 5-axis precision CNC machining.
Below we break down mainstream semiconductor vacuum components and their core manufacturing specifications.

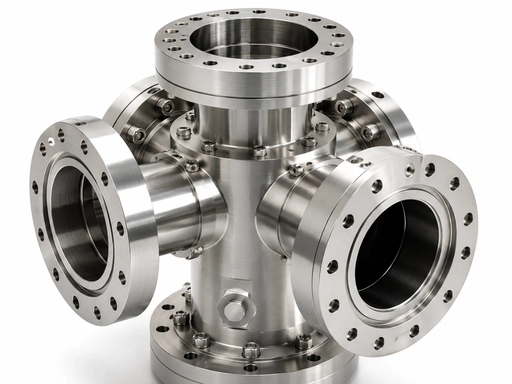

1. Vacuum Chamber Assemblies (Highest Demand Large-Scale Parts)
Vacuum chambers form the foundation of all semiconductor vacuum systems. They are typically machined from forged aluminum alloy or 316L stainless steel.
- Process Chamber: The core reaction vessel where wafer deposition or etching takes place. It requires integrated cooling channels, multiple mounting ports and flat sealing surfaces.
- Transfer Chamber: Used for automated wafer transportation between different process stations.
- Load Lock Chamber: Acts as an atmospheric buffer. It prevents breaking the high vacuum inside main chambers when loading/unloading wafers.
Machining Notes: Thick-wall machining, distortion control, precision port drilling, uniform surface finishing to reduce outgassing. Many customers turn to professional semiconductor vacuum components CNC machining suppliers for consistent chamber quality.
2. Internal Wafer Processing Components
These are high-value internal parts directly exposed to plasma and process gas.
Showerhead (Gas Distribution Plate)
A key component for CVD and etch equipment. Thousands of tiny precision holes distribute process gas evenly above wafers. Common materials: 6061 aluminum, OFC oxygen-free copper. Tolerance and hole consistency directly impact wafer yield. For high-conductivity vacuum hardware, manufacturers frequently rely on Oxygen-Free Copper (OFC) CNC Machining for Semiconductor Vacuum Components.
ESC Base / Wafer Pedestal
The base carrier for electrostatic chucks. It contains internal helium cooling channels to stabilize wafer temperature. OFC copper is widely selected for superior thermal conductivity.
Shield Liners & Covers
Protects chamber walls from plasma contamination. Titanium alloy or 316L stainless steel is commonly used. Easy disassembly design is required for regular cleaning.
Vacuum Crucible
Used for PVD thin-film evaporation. High-purity oxygen-free copper and molybdenum are typical raw materials. Consistent surface finish avoids impurity release under high temperature. You can learn more details in our guide for Custom Semiconductor Crucibles.
3. Vacuum Flanges, Manifolds & Connection Hardware
Sealing performance determines the ultimate vacuum level of the whole system.
- Conflat (CF) Ultra-High Vacuum Flanges: The standard for UHV semiconductor equipment. Knife-edge sealing surface demands ultra-precise flatness and roughness control.
- KF / ISO Vacuum Flanges: Applied on auxiliary pipelines and low-vacuum subsystems.
- Vacuum Manifolds: Multi-channel gas or pumping manifolds with complex internal flow paths. Requires 5-axis CNC to complete internal channel machining in one setup.
4. Vacuum Feedthrough Bases
Feedthroughs allow power, cooling water and signal cables to pass through vacuum walls without leaks.
- Electrical feedthrough mounting bases
- Fluid cooling feedthrough housings
- Viewport & sensor mounting flanges
All contact surfaces must be precision machined to match sealing gaskets.
5. Vacuum Valve Bodies & Motion Structural Parts
Gate valves, angle valves and slit valves control vacuum isolation between chambers. CNC machined parts include valve housings, valve plates and bellows support bases. Low-friction, non-outgassing material selection is mandatory.
6. Pump Interface Components
Connect process chambers to vacuum pumps (turbo molecular pumps, cryopumps): pump adapter flanges, baffles, anti-backflow shielding plates.
Critical Machining Standards for Semiconductor Vacuum Components
- Low Outgassing Requirement Materials must avoid porous castings. Forged blanks are preferred. Surface finishing eliminates trapped contaminants. OFC copper, forged Al alloy and 316L stainless steel are industry favorites.
- Strict Leakage Control Sealing knife edges, flat mating surfaces must hold tight dimensional tolerances. Minor machining defects will cause continuous vacuum leakage.
- High Cleanliness Parts are delivered after precision deburring, ultrasonic cleaning and vacuum bakeout. No residual cutting fluid or metal debris can remain inside internal channels.
- Complex Internal Channels Cooling tunnels and gas flow paths often require 5-axis CNC machining to avoid multiple clamping errors. UHV vacuum design follows industry standards published by the American Vacuum Society (AVS).
How HS CNC Supports Semiconductor Vacuum Component Manufacturing
HS CNC delivers custom precision machining for all types of semiconductor vacuum hardware. Our workshop specializes in semiconductor vacuum components CNC machining for low-outgassing vacuum assemblies:
✅ OFC oxygen-free copper vacuum parts
✅ Forged aluminum & 316L stainless steel vacuum chambers
✅ Custom showerheads, wafer pedestals and Conflat flanges
✅ Micron tolerance control for UHV equipment
✅ One-stop service from prototype to low & medium batch production
We work closely with semiconductor equipment suppliers to meet strict vacuum and cleanliness specifications for wafer fab machinery.
Looking for professional semiconductor vacuum components CNC machining for your semiconductor equipment?
HS CNC provides low-outgassing custom vacuum parts, prototype testing and batch manufacturing.
