Our precision cnc machining capabilities
With comprehensive precision cnc machining capabilities, we serve customers across medical equipment, automation, pneumatic‑hydraulic and instrument industries. Whether you submit simple 2D drawings or complex 3D STEP files, our engineering team reviews tolerances, material selections and manufacturability before formal production. We support low‑volume prototype runs as well as large‑scale mass orders for overseas purchasing projects.
Our precision cnc machining capabilities cover multi‑axis milling, CNC turning, tight‑tolerance inspection and various surface finishing services for custom industrial components. We equip advanced production and measuring equipment to handle complex‑geometry parts from prototype samples to volume batch orders.
Multi‑Axis CNC Machining Equipment
Our workshop supports 3‑axis, 4‑axis and 5‑axis CNC milling together with high‑precision CNC turning centers. These machines enable us to produce complicated cavities, threads and curved profiles for aluminum, stainless steel, brass and engineering plastic materials. Strict dimensional requirements up to ±0.01 mm can be achieved for your custom projects.
Quality Inspection & Metrology Capabilities
Besides machining hardware, reliable inspection is one of our core cnc machining capabilities. We use CMM coordinate measuring machines and other testing tools to verify dimension, flatness and tolerance before shipment. Every critical custom CNC‑machined part will go through dimension checking to reduce defect risks for overseas buyers.
Available Secondary Processes
We provide one‑stop manufacturing solutions beyond raw machining. Supported secondary operations include Type II / Type III hard anodizing, mirror polishing, coating, threading and deburring. You can send your complete drawings with finishing specifications, and we handle the whole production workflow.

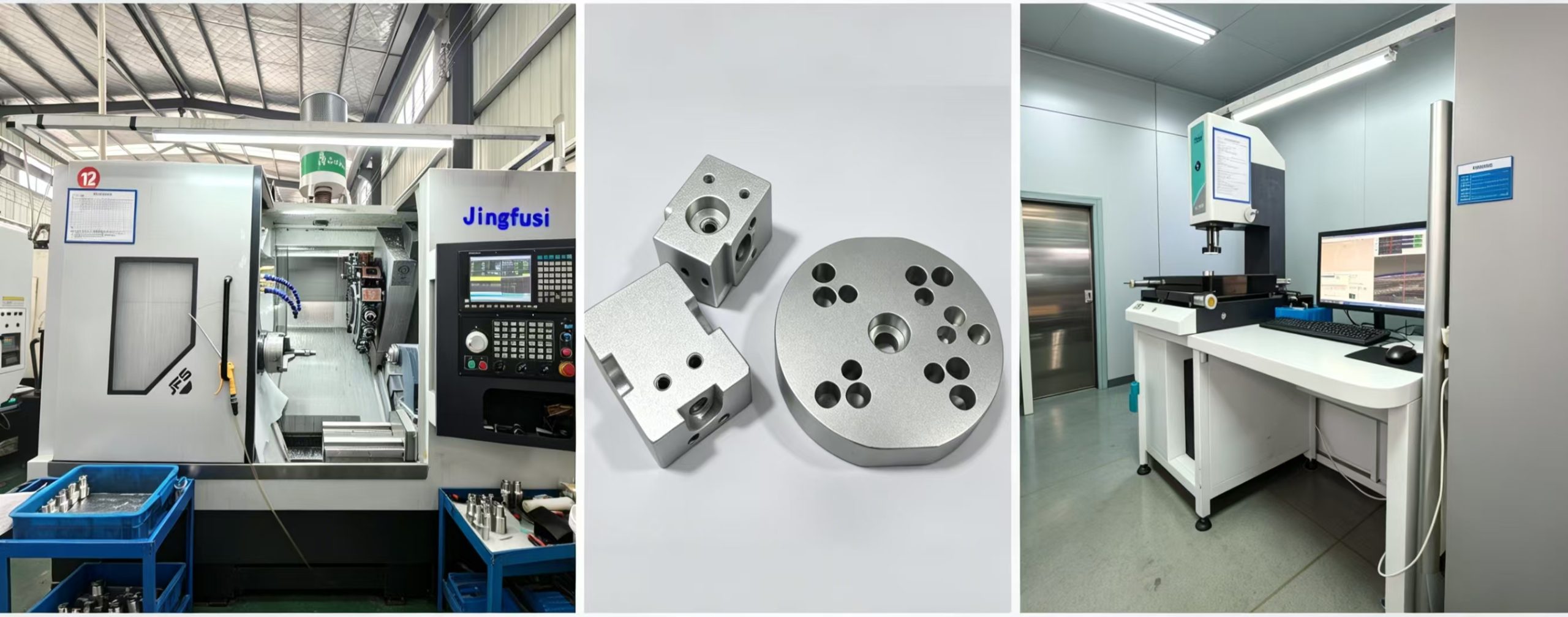

CNC technical capabilities 5-axis CMM inspection
CNC Capabilities to Meet Your Precision Needs
5-Axis Machining
Complex geometry in one setup
Tight Tolerances
±0.005mm on critical features
Thin-Wall Machining
Down to 0.5mm with stability
Deep Hole Drilling
L/D ratio up to 20:1
Surface Finishes
Ra 0.8 · Anodizing · Passivation
Material Versatility
Aluminum · Steel · Titanium · Inconel · PEEK
CNC technical specifications tolerance material chart
Below is our full CNC machining capability table, tailored for professional buyers. Contact us for custom solutions
| CNC Machining | |
| Max part size | 800 × 500 × 300 mm (customizable) |
|---|---|
| Tolerance | ±0.005mm (standard ±0.01mm) |
| Spindle speed | Up to 20,000 RPM |
| Surface finish | Ra 0.8 (standard Ra 1.6) |
| Materials | |
| Aluminum | 6061, 7075, 2024, 5052 |
| Stainless steel | 303, 304, 316, 17-4PH |
| Steel | 45#, 4140, 4130, 4340 |
| Titanium | Grade 2, Grade 5 (6Al-4V) |
| High-temp alloys | Inconel 625, 718, Monel |
| Plastics | PEEK, POM, PTFE, ABS |
| Secondary Services | |
| Heat treatment | Annealing, hardening, stress relief |
| Surface finishing | Anodizing, passivation, plating, powder coating |
| Inspection | CMM, micrometer, surface roughness tester |
Quality & Inspection
• CMM Inspection – ±0.001mm accuracy on complex geometry
• First Article Inspection – AS9102 compliant FAI report
• Material Certification – Mill certs & full traceability
Discuss Your Technical Requirements
Drawings & File Formats We Accept
We work with most common engineering file formats for custom CNC manufacturing, including STEP, IGES, SolidWorks files, DXF and PDF drawings. When you send an inquiry, please include dimension requirements, tolerance standards, material specification and surface‑finishing notes. Our engineers will review manufacturability and give you feedback within one working day. Even small‑batch prototype projects are welcome for technical evaluation.
✅ Free DFM feedback | ✅ Full inspection report | ✅ 24h quote
